BIC-2200-48CAN

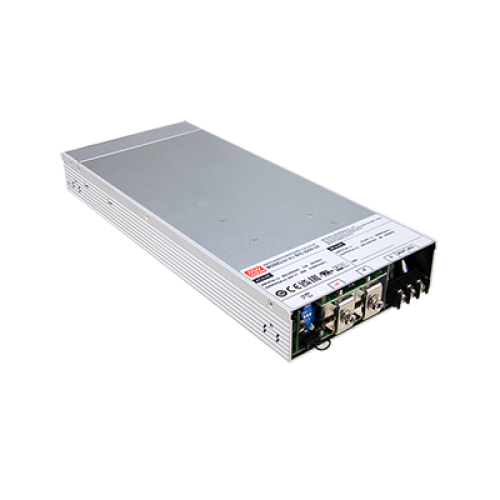

The MEAN WELL BIC-2200-48CAN is a 2.2kW AC/DC bidirectional power supply designed for applications where power needs to move between an AC grid and a 48VDC battery or DC load system. In AC to DC mode, it functions as a power supply or charger, converting grid power into a regulated 48VDC output with a 45A rated current and 2160W rated power. In DC to AC mode, it can recycle DC energy back to the AC grid, helping support energy recovery and test applications where returned energy can reduce wasted power. The CANBus version adds communication control for applications requiring system-level monitoring and charge/discharge management. Built in a compact 1U low-profile case, the BIC-2200-48CAN features full digital control, 180-264VAC input, 47-63Hz operation, ultra-fast 1ms switching between AC/DC and DC/AC conversion, active current sharing for higher power systems, and protection against anti-islanding, AC fail, DC overvoltage, overload, overcurrent and overtemperature. With typical efficiency up to 93% in both AC to DC and DC to AC operation, the BIC-2200-48CAN is suitable for battery formation and grading, V2G systems, battery charging modules, kinetic energy recovery systems and other energy recycling applications requiring a 48V bidirectional power platform with CANBus communication.
