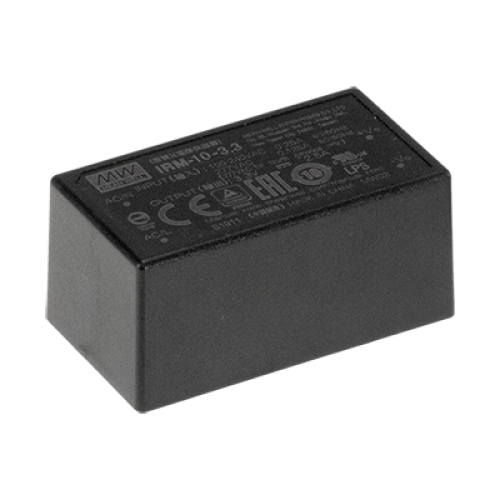

IRM-10-3.3
8W 3.3VDC 2.5A PCB Mount Encapsulated Power Supply Please ring us to discuss a great price for this product.Product Features
- Cooling by free air convection
- 1.8" × 1" compact size
- Isolation Class II
- No load power consumption < 0.1W
- Pass LPS
- Wide operating temperature range: -30~+70°C
- 3 years warranty
- Universal input: 85~305VAC
- EMI Class B without additional components
Description
The MEAN WELL IRM-10-3.3 is a miniature AC-DC PCB-mount green power module designed for compact low-power electronic equipment. It provides a regulated 3.3VDC output with a 2.5A rated current and 8.25W rated power, accepting a universal 85-305VAC input and 120-430VDC input for flexible integration into PCB-based designs. The unit features a compact 45.7 x 25.4 x 21.5mm encapsulated package, Class II design with no FG pin, built-in EMI filtering components, low no-load power consumption below 0.1W, free air convection cooling and protection against short circuit, overload and overvoltage. It is suitable for industrial electrical equipment, mechanical equipment, factory automation equipment and handheld electronic devices.
Style
- PCB
