IRM-90-12

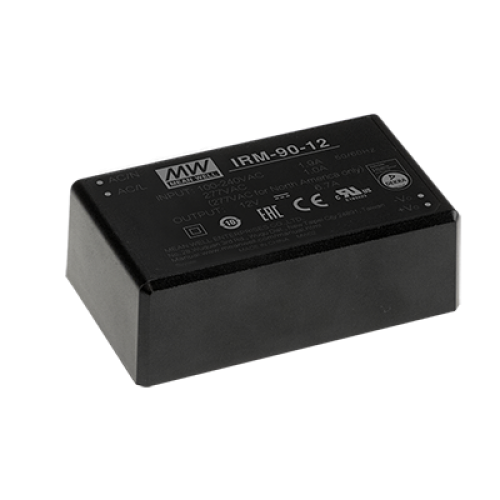

80W 12CVDC 6.7A PCB Mount Encapsulated Power Supply Please ring us to discuss a great price for this product.Product Features
- Cooling by free air convection
- Operating altitude up to 4000 meters (Note 7)
- Overvoltage category III
- Universal input: 80~305VAC
- 3.43” × 2.05” compact size
- Isolation Class II
- EMI compliance: BS EN/EN55032 Class B without additional components
- 100W peak load (10 seconds)
- No load power consumption < 0.3W
- 3 years warranty
- PCB, chassis, or screw terminal mounting version
- Wide operating temperature range: -30~+80°C
Description
The MEAN WELL IRM-90-12 is a 90W class AC-DC PCB-mount green power module designed for compact embedded power applications requiring a regulated 12VDC output. It provides 6.7A convection output with 80.4W rated power, plus up to 7.37A and 88.4W peak output for 10 seconds, accepting a universal 80-305VAC input and 113-431VDC input for flexible integration into PCB-based equipment designs. The unit features a compact 87 x 52 x 29.5mm encapsulated package, Class II design with no FG pin, built-in EMI filtering components, low no-load power consumption below 0.3W, free air convection cooling, overvoltage category III, operating altitude up to 4000 metres and protection against short circuit, overload, overvoltage and overtemperature. It is suitable for industrial electrical equipment, mechanical equipment, factory automation equipment and handheld electronic devices.
Style
- PCB
