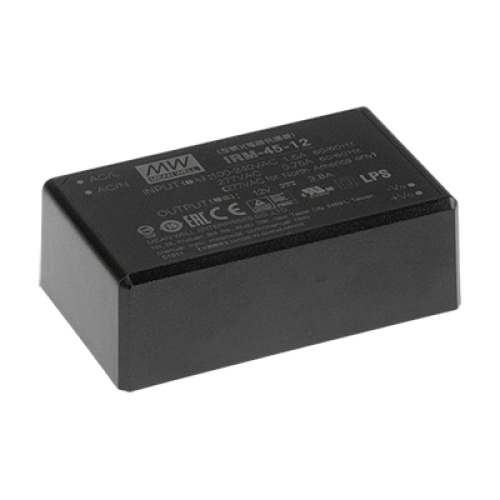

IRM-45-48ST
45W 48VDC 0.94A PCB Mount Encapsulated Power Supply with Screw Terminals Please ring us to discuss a great price for this product.Product Features
- 3.43” × 2.05” compact size
- No load power consumption < 0.15W
- PCB, chassis or screw terminal mounting version
- EMI Class B without additional components
- Overvoltage category II
- Pass LPS (Except for 5V)
- 3 years warranty
- Isolation Class II
- Wide operating temperature range: -30~70°C
- Cooling by free air convection
- Universal input: 85~305VAC
Description
The MEAN WELL IRM-45-48ST is a 45W AC-DC green power module supplied in a screw terminal mounting style for compact embedded power applications. It provides a regulated 48VDC output with a 0.94A rated current and 45.12W rated power, accepting a universal 85-305VAC input for flexible integration into equipment designs. The unit features a 109 x 52 x 33.5mm screw terminal package, Class II design with no FG pin, built-in EMI filtering components, low no-load power consumption below 0.15W, free air convection cooling, overvoltage category III and protection against short circuit, overload and overvoltage. With anti-vibration capability up to 5G, it is suitable for industrial electrical equipment, mechanical equipment, factory automation equipment and handheld electronic devices.
Style
- Screw Terminal
