IRM-45-12

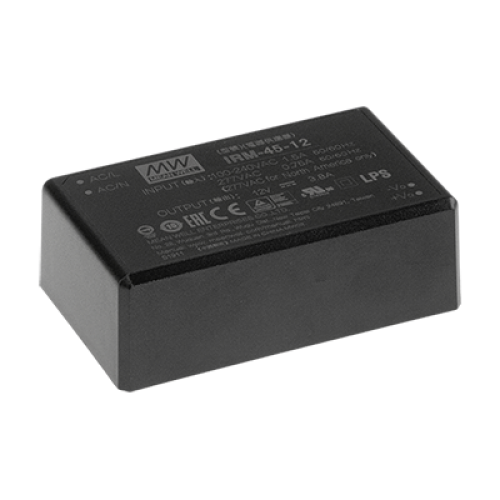

45W 12VDC 3.8A PCB Mount Encapsulated Power Supply Please ring us to discuss a great price for this product.Product Features
- No load power consumption < 0.15W
- Universal input: 85~305VAC
- 3.43” × 2.05” compact size
- Cooling by free air convection
- Pass LPS (Except for 5V)
- PCB, chassis or screw terminal mounting version
- 3 years warranty
- Isolation Class II
- Wide operating temperature range: -30~70°C
- EMI Class B without additional components
- Overvoltage category II
Description
The MEAN WELL IRM-45-12 is a 45W AC-DC PCB-mount green power module designed for compact embedded power applications. It provides a regulated 12VDC output with a 3.8A rated current and 45.6W rated power, accepting a universal 85-305VAC input for flexible integration into PCB-based equipment designs. The unit features a compact 87 x 52 x 29.5mm encapsulated package, Class II design with no FG pin, built-in EMI filtering components, low no-load power consumption below 0.15W, free air convection cooling, overvoltage category III and protection against short circuit, overload and overvoltage. It is suitable for industrial electrical equipment, mechanical equipment, factory automation equipment and handheld electronic devices.
Style
- PCB
