IRM-30-5

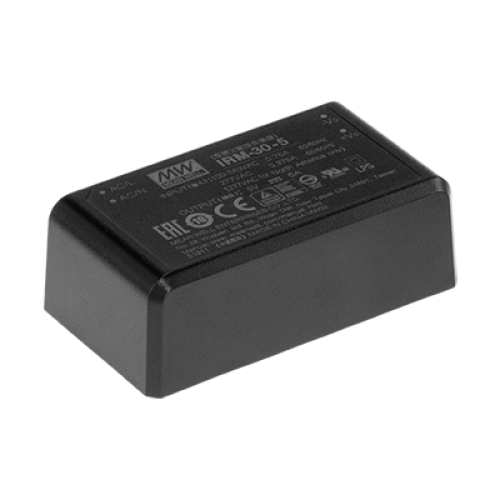

30W 5VDC 6A PCB Mount Encapsulated Power Supply Please ring us to discuss a great price for this product.Product Features
- EMI Class B without additional components
- Cooling by free air convection
- 3 years warranty
- Isolation Class II
- Universal input: 85–305VAC
- PCB, chassis or screw terminal mounting version
- 2.74" × 1.54" compact size
- Over voltage category III
- No load power consumption < 0.1W
- Pass LPS (except for 5V)
Description
The MEAN WELL IRM-30-5 is a 30W AC-DC PCB-mount green power module designed for compact embedded power applications. It provides a regulated 5VDC output with a 6A rated current and 30W rated power, accepting a universal 85-305VAC input for flexible integration into PCB-based equipment designs. The unit features a compact 69.5 x 39 x 24mm encapsulated package, Class II design with no FG pin, built-in EMI filtering components, low no-load power consumption below 0.1W, free air convection cooling, overvoltage category III and protection against short circuit, overload and overvoltage. It is suitable for industrial electrical equipment, mechanical equipment, factory automation equipment and handheld electronic devices.
Style
- PCB
