LOP-600-36
600W 80 ~ 264VAC 36VDC 16.7A 5""x3"" Low Profile Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- 3 year warranty
- Compact size of 5"x3" with a low profile of 35.5mm
- Capable of operating at altitudes up to 5000 meters
- High efficiency up to 95%
- Universal input voltage range from 80-264VAC with PFC
- 40°C to +80°C wide range operation temperature
Description

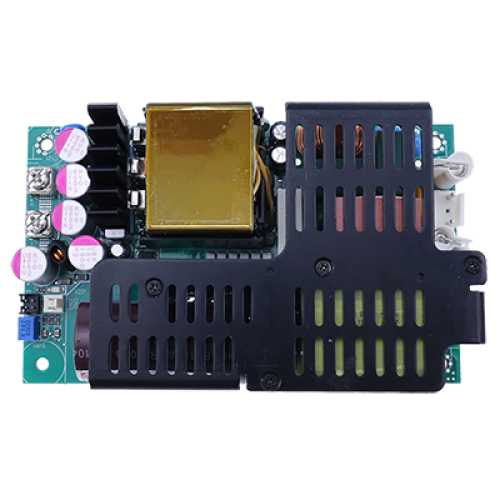

The MEAN WELL LOP-600-36 is a 600W class low profile open frame power supply designed for compact equipment requiring a regulated 36VDC output. It delivers 16.7A and 601.2W with 23CFM forced-air cooling, 11.1A and 399.6W under free air convection, and supports a 25A / 900W peak load for 3 seconds. The unit accepts 80-264VAC input with built-in PFC, provides 95% typical efficiency and includes a 36V output adjustment range of 34.2V to 37.8V. With a compact 127 x 76.2 x 33.5mm open frame design, low no-load power consumption below 0.5W, remote sense, 12V/0.5A external fan supply, low leakage and touch current, Class I or Class II installation suitability, 2xMOPP isolation and protection against short circuit, overload, overvoltage and overtemperature, the LOP-600-36 is suitable for industrial automation, security, medical, network, telecom and electronic equipment applications.
