LOP-600-15
600W 80 ~ 264VAC 15VDC 40A 5""x3"" Low Profile Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- 40°C to +80°C wide range operation temperature
- Capable of operating at altitudes up to 5000 meters
- 3 year warranty
- Universal input voltage range from 80-264VAC with PFC
- High efficiency up to 95%
- Compact size of 5"x3" with a low profile of 35.5mm
Description

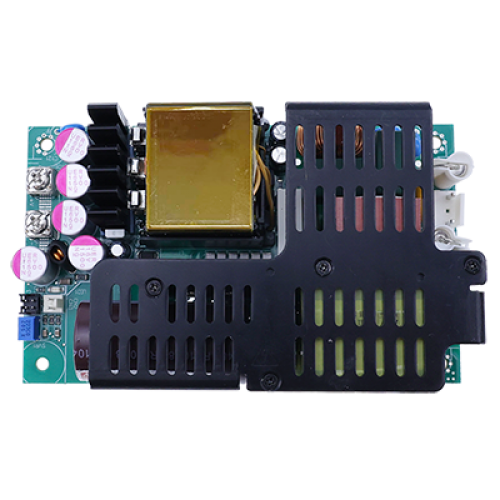

The MEAN WELL LOP-600-15 is a 600W class low profile open frame power supply designed for compact equipment requiring a regulated 15VDC output. It delivers 40A and 600W with 23CFM forced-air cooling, 24A and 360W under free air convection, and supports a 60A / 900W peak load for 3 seconds. The unit accepts 80-264VAC input with built-in PFC, provides 93.5% typical efficiency and includes a 15V output adjustment range of 14.3V to 15.8V. With a compact 127 x 76.2 x 33.5mm open frame design, low no-load power consumption below 0.5W, remote sense, 12V/0.5A external fan supply, low leakage and touch current, Class I or Class II installation suitability, 2xMOPP isolation and protection against short circuit, overload, overvoltage and overtemperature, the LOP-600-15 is suitable for industrial automation, security, medical, network, telecom and electronic equipment applications.
