LOP-600-12
600W 80 ~ 264VAC 12VDC 50A 5""x3"" Low Profile Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- Capable of operating at altitudes up to 5000 meters
- Compact size of 5"x3" with a low profile of 35.5mm
- High efficiency up to 95%
- 40°C to +80°C wide range operation temperature
- 3 year warranty
- Universal input voltage range from 80-264VAC with PFC
Description

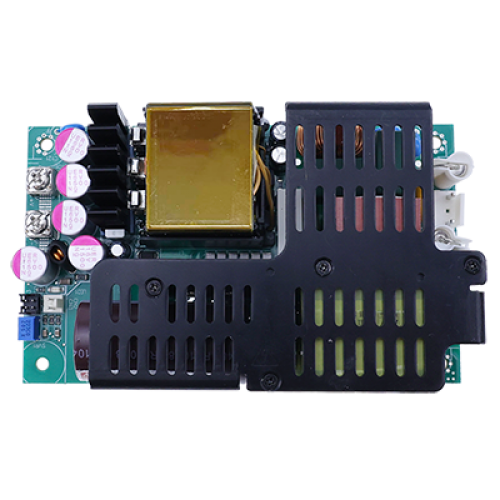

The MEAN WELL LOP-600-12 is a 600W class low profile open frame power supply designed for compact equipment requiring a regulated 12VDC output. It delivers 50A and 600W with 23CFM forced-air cooling, 30A and 360W under free air convection, and supports a 75A / 900W peak load for 3 seconds. The unit accepts 80-264VAC input with built-in PFC, provides 93% typical efficiency and includes a 12V output adjustment range of 11.4V to 12.6V. With a compact 127 x 76.2 x 35mm open frame design, low no-load power consumption below 0.5W, remote sense, 12V/0.5A external fan supply, low leakage and touch current, Class I or Class II installation suitability, 2xMOPP isolation and protection against short circuit, overload, overvoltage and overtemperature, the LOP-600-12 is suitable for industrial automation, security, medical, network, telecom and electronic equipment applications.
