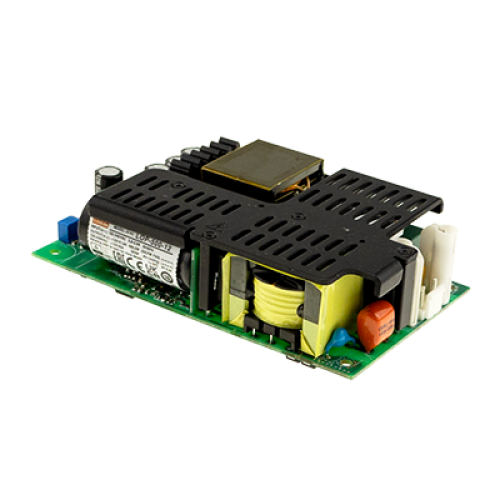

LOP-500-54
500W 80 ~ 264VAC 54VDC 9.3A 5""x3"" Low Profile Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 320W convection, 500W with FAN 23CFM forced-cooled
- 3 years warranty
- 80-264Vac input with PFC, No load power consumption <0.5W
- 40ºC ~ +80°C wide range operation temperature
- 5"x3" compact size with low profile (30.5mm)
- Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
Description
The MEAN WELL LOP-500-54 is a 500W class low profile open frame power supply designed for compact equipment requiring a regulated 54VDC output, including power sourcing equipment for PoE applications. It delivers 9.3A and 502.2W with 23CFM forced-air cooling, 6A and 324W under free air convection, and supports a 13.9A / 750.6W peak load for 3 seconds. The unit accepts 80-264VAC input with built-in PFC, provides 95% typical efficiency and includes a 54V output adjustment range of 52V to 58V. With a compact 127 x 76.2 x 30.5mm open frame design, low no-load power consumption below 0.5W, remote sense, 12V/0.5A external fan supply, low leakage and touch current, Class I or Class II installation suitability, 2xMOPP isolation and protection against short circuit, overload, overvoltage and overtemperature, the LOP-500-54 is suitable for PoE equipment, industrial automation, security, medical, network, telecom and electronic equipment applications.
