LOP-500-27
500W 80 ~ 264VAC 27VDC 18.5A 5""x3"" Low Profile Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- 3 years warranty
- 80-264Vac input with PFC, No load power consumption <0.5W
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 320W convection, 500W with FAN 23CFM forced-cooled
- 5"x3" compact size with low profile (30.5mm)
- Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
- 40ºC ~ +80°C wide range operation temperature
Description

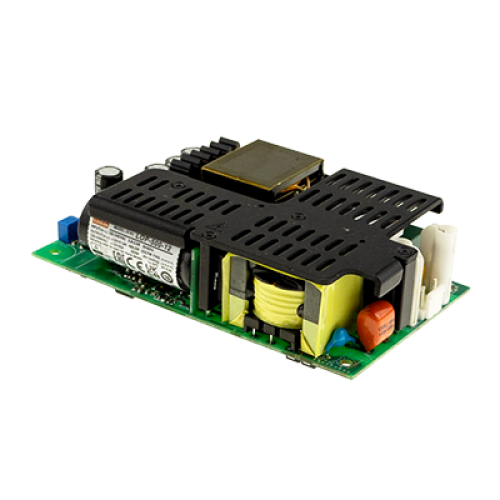

The MEAN WELL LOP-500-27 is a 500W class low profile open frame power supply designed for compact equipment requiring a regulated 27VDC output. It delivers 18.5A and 499.5W with 23CFM forced-air cooling, 11.9A and 321.3W under free air convection, and supports a 27.8A / 750.6W peak load for 3 seconds. The unit accepts 80-264VAC input with built-in PFC, provides 95% typical efficiency and includes a 27V output adjustment range of 25.6V to 28.4V. With a compact 127 x 76.2 x 30.5mm open frame design, low no-load power consumption below 0.5W, remote sense, 12V/0.5A external fan supply, low leakage and touch current, Class I or Class II installation suitability, 2xMOPP isolation and protection against short circuit, overload, overvoltage and overtemperature, the LOP-500-27 is suitable for industrial automation, security, medical, network, telecom and electronic equipment applications.
