LOP-400-18
400W 80 ~ 264VAC 18VDC 22.2A 5""x3"" Low Profile Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- 3 year warranty
- Efficiency up to 95%
- Capable of operating at altitudes up to 5000 meters
- Compliance with Over Voltage Category III
- Extremely low leakage current, 2 x MOPP, making it suitable for BF medical applications
- Operates within a wide temperature range of -40°C to +80°C
- 5"x3" with a low profile of 27.5mm
Description

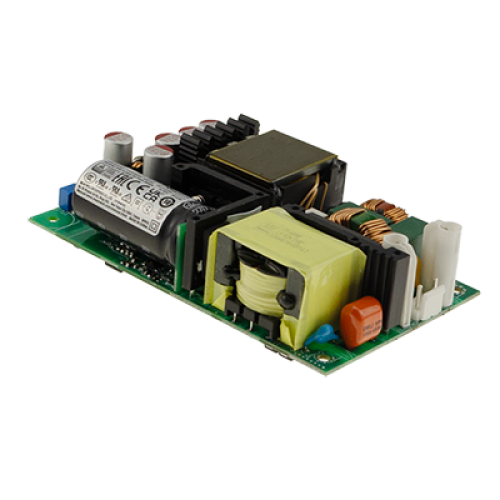

The MEAN WELL LOP-400-18 is a 400W class low profile open frame power supply designed for compact equipment requiring a regulated 18VDC output. It delivers 22.2A and 399.6W with 23CFM forced-air cooling, 13.9A and 250.2W under free air convection, and supports a 33.3A / 599.4W peak load for 3 seconds. The unit accepts 80-264VAC input with built-in PFC, provides 95% typical efficiency and includes an 18V output adjustment range of 17.1V to 18.9V. With a compact 127 x 76.2 x 27.5mm open frame design, low no-load power consumption below 0.5W, remote sense, 12V/0.5A external fan supply, low leakage and touch current, Class I or Class II installation suitability, 2xMOPP isolation and protection against short circuit, overload, overvoltage and overtemperature, the LOP-400-18 is suitable for industrial automation, security, medical, network, telecom and electronic equipment applications.
