LOP-200-48
200W 80 ~ 264VAC 48VDC 3A 4""x2"" Low Profile Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- 3 years warranty
- 4"x2" Low profile (25.4mm)
- Suitable for Class I or Class II installations
- >0.5W no load power consumption
- Short circuit, overload, over-voltage, over temperature protections
- 40ºC to +80ºC wide range operating temperatures
Description

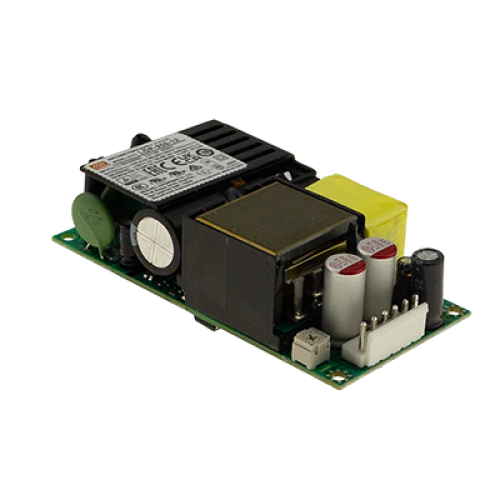

The MEAN WELL LOP-200-48 is a 200W class low profile open frame power supply designed for compact equipment requiring a regulated 48VDC output. It delivers 4.2A and 201.6W with 10.98CFM forced-air cooling, 3A and 144W under free air convection, and supports a 6.3A / 302.4W peak load for 3 seconds. The unit accepts 80-264VAC input with built-in PFC, provides 94% typical efficiency and includes a 48V output adjustment range of 45.6V to 50.4V. With a compact 101.6 x 50.8 x 25.4mm open frame design, low no-load power consumption below 0.5W, 12V/0.5A external fan supply, low leakage and touch current, Class I or Class II installation suitability, 2xMOPP isolation and protection against short circuit, overload, overvoltage and overtemperature, the LOP-200-48 is suitable for industrial automation, security, medical, network, telecom and electronic equipment applications.
