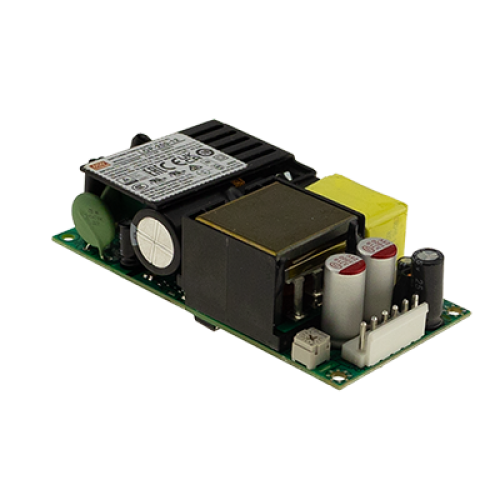

LOP-200-18
200W 80 ~ 264VAC 18VDC 7.8A 4""x2"" Low Profile Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- Short circuit, overload, over-voltage, over temperature protections
- 40ºC to +80ºC wide range operating temperatures
- 3 years warranty
- 4"x2" Low profile (25.4mm)
- >0.5W no load power consumption
- Suitable for Class I or Class II installations
Description
The MEAN WELL LOP-200-18 is a 200W class low profile open frame power supply designed for compact equipment requiring a regulated 18VDC output. It delivers 11.1A and 199.8W with 10.98CFM forced-air cooling, 7.8A and 140.4W under free air convection, and supports a 16.7A / 300.6W peak load for 3 seconds. The unit accepts 80-264VAC input with built-in PFC, provides 93.5% typical efficiency and includes an 18V output adjustment range of 17.1V to 18.9V. With a compact 101.6 x 50.8 x 25.4mm open frame design, low no-load power consumption below 0.5W, 12V/0.5A external fan supply, low leakage and touch current, Class I or Class II installation suitability, 2xMOPP isolation and protection against short circuit, overload, overvoltage and overtemperature, the LOP-200-18 is suitable for industrial automation, security, medical, network, telecom and electronic equipment applications.
