LOP-200-15
200W 80 ~ 264VAC 15VDC 9.4A 4""x2"" Low Profile Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- >0.5W no load power consumption
- 4"x2" Low profile (25.4mm)
- Short circuit, overload, over-voltage, over temperature protections
- Suitable for Class I or Class II installations
- 40ºC to +80ºC wide range operating temperatures
- 3 years warranty
Description

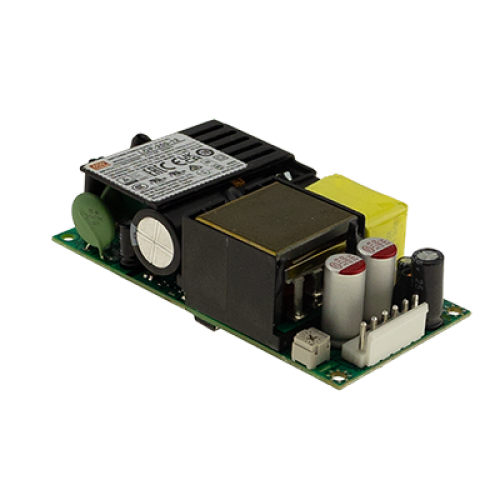

The MEAN WELL LOP-200-15 is a 200W class low profile open frame power supply designed for compact equipment requiring a regulated 15VDC output. It delivers 13.4A and 201W with 10.98CFM forced-air cooling, 9.4A and 141W under free air convection, and supports a 20A / 300W peak load for 3 seconds. The unit accepts 80-264VAC input with built-in PFC, provides 93% typical efficiency and includes a 15V output adjustment range of 14.3V to 15.8V. With a compact 101.6 x 50.8 x 25.4mm open frame design, low no-load power consumption below 0.5W, 12V/0.5A external fan supply, low leakage and touch current, Class I or Class II installation suitability, 2xMOPP isolation and protection against short circuit, overload, overvoltage and overtemperature, the LOP-200-15 is suitable for industrial automation, security, medical, network, telecom and electronic equipment applications.
