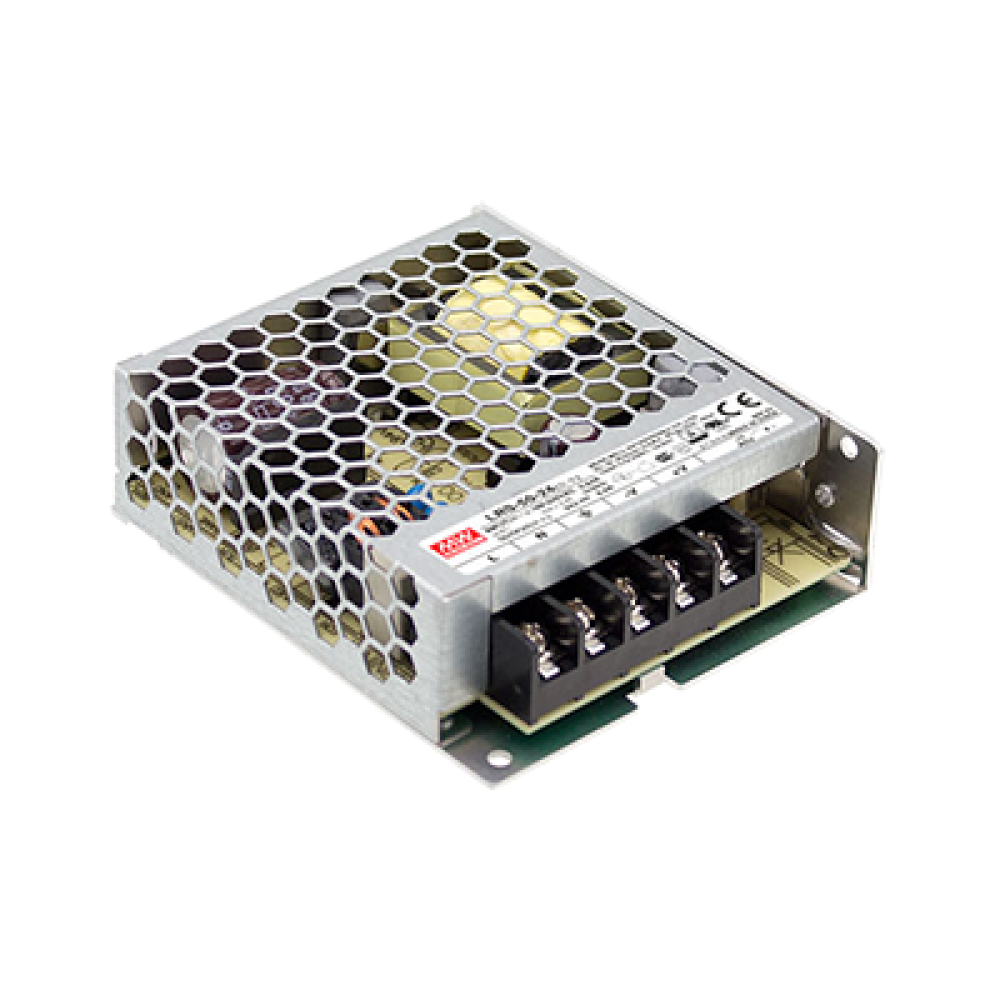

LRS-50-3.3
33W 3.3VDC 10A Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- High efficiency, long life and high reliability
- No load power consumption < 0.3W
- Withstands 300VAC surge input for 5 seconds
- 100% full load burn-in test
- Miniature size and 1U low profile (30mm)
- 3 years warranty
- Operating altitude up to 5000 metres
- Universal AC input / Full range
- Withstands 5G vibration test
- LED indicator for power on
- High operating temperature up to 70°C
- Cooling by free air convection
- Over voltage category III
Description
The MEAN WELL LRS-50-3.3 is a compact single-output enclosed switching power supply designed for industrial automation, control systems, electronic equipment and low-voltage DC applications requiring a reliable 3.3VDC supply. Delivering 33W output power with a 10A rated current, it accepts a universal 85-264VAC input and supports 120-373VDC input, giving flexibility across a wide range of installations. Its low-profile metallic mesh case supports heat dissipation through free air convection, allowing fanless operation across a working temperature range of -30°C to +70°C with derating. With 80% typical efficiency, low no-load power consumption below 0.3W, a 300VAC surge input withstand for 5 seconds, LED power indicator, 5G vibration resistance and protection against short circuit, overload and overvoltage, the LRS-50-3.3 provides a dependable 3.3V power solution for compact equipment and industrial systems.
