LRS-100N2-12
102W 12VDC 8.5A High Peak Power Power Supply Please ring us to discuss a great price for this product.Product Features
- 3 years warranty
- High efficiency, long life and high reliability
- Protections: short circuit / overload / over voltage
- Compliance to IEC/BS EN/EN61558-1 and 62368-1
- Up to 200% peak power capability
- High operating temperature up to 70°C
- No load power consumption < 0.5W
- Universal AC input / full range
- Over voltage category III (OVC III)
- Withstand 300VAC surge input for 5 second
- Operating altitude up to 4000 meters
Description

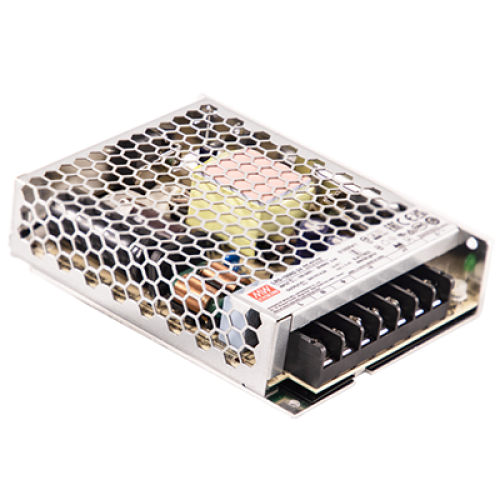

The MEAN WELL LRS-100N2-12 is a 102W single-output enclosed high peak power supply designed for industrial automation, control systems, electronic equipment and applications requiring a reliable 12VDC supply with short-duration peak power capability. Delivering 12VDC at 8.5A, it accepts a universal 85-264VAC input and supports 120-373VDC input for flexible integration into different equipment designs. Its low-profile 1U metallic mesh case supports heat dissipation through free air convection, allowing fanless operation across a working temperature range of -30°C to +70°C with derating. With 88% typical efficiency, no-load power consumption below 0.5W, 300VAC surge input withstand for 5 seconds, LED power indicator, 5G vibration resistance and protection against short circuit, overload and overvoltage, the LRS-100N2-12 provides a dependable 12V power solution for compact industrial systems and start-up load applications.
