XDR-75E-24

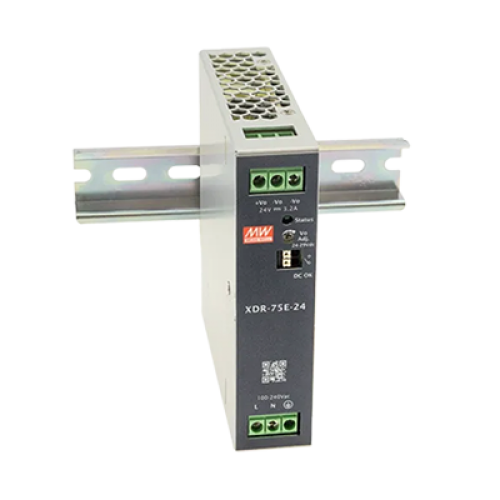

75W 24VDC Economical Ultra Slim Industrial DIN Rail Power Supplies Please ring us to discuss a great price for this product.Product Features
- 40~+70°C wide range operation temperature (+5-50°C derating)
- 85~264Vac input range
- L116 x W30 x H125.2mm
- 3 years warranty
- Fanless design, cooling by free air convection
- 30mm slim width
- Built-in DC OK relay contact
- High efficiency up to 91% and no load power dissipation < 1W
- Protections: Short circuit / Overload / Over voltage / Over temperature
Description
The MEAN WELL XDR-75E-24 is a 75W class AC/DC economical ultra slim industrial DIN rail power supply designed for compact control panels and industrial equipment requiring a regulated 24VDC output. It delivers 3.2A rated current and 76.8W rated power, with an adjustable output range of 24V to 29V. The unit accepts 85-264VAC input and 120-370VDC input, provides 90% typical efficiency and uses fanless free air convection cooling to support reliable operation in enclosed systems. With a 30 x 125.2 x 116mm slim DIN rail housing, built-in constant current limiting, DC OK relay contact, overvoltage category III, operation from -40°C to +70°C with derating and protection against short circuit, overload, overvoltage and overtemperature, the XDR-75E-24 is suitable for industrial control systems, factory automation, semiconductor fabrication equipment, electro-mechanical apparatus and battery charger applications.
